Siemens Collimator 2013 ML01 II
Model Number: 10092611
Siemens Collimator 2013 ML01 II
Precisely collimates the X-ray beam to match the size of the object being imaged
Manual collimation using the field light localizer and/or scale
Line light localizer included for accurate Bucky centering
Ready for DAP chamber installation
Key Features:
Bright LED field light for high visibility and long life
Lamellae placed close to the source to block extrafocal radiation
Manual prefilters for enhanced beam shaping

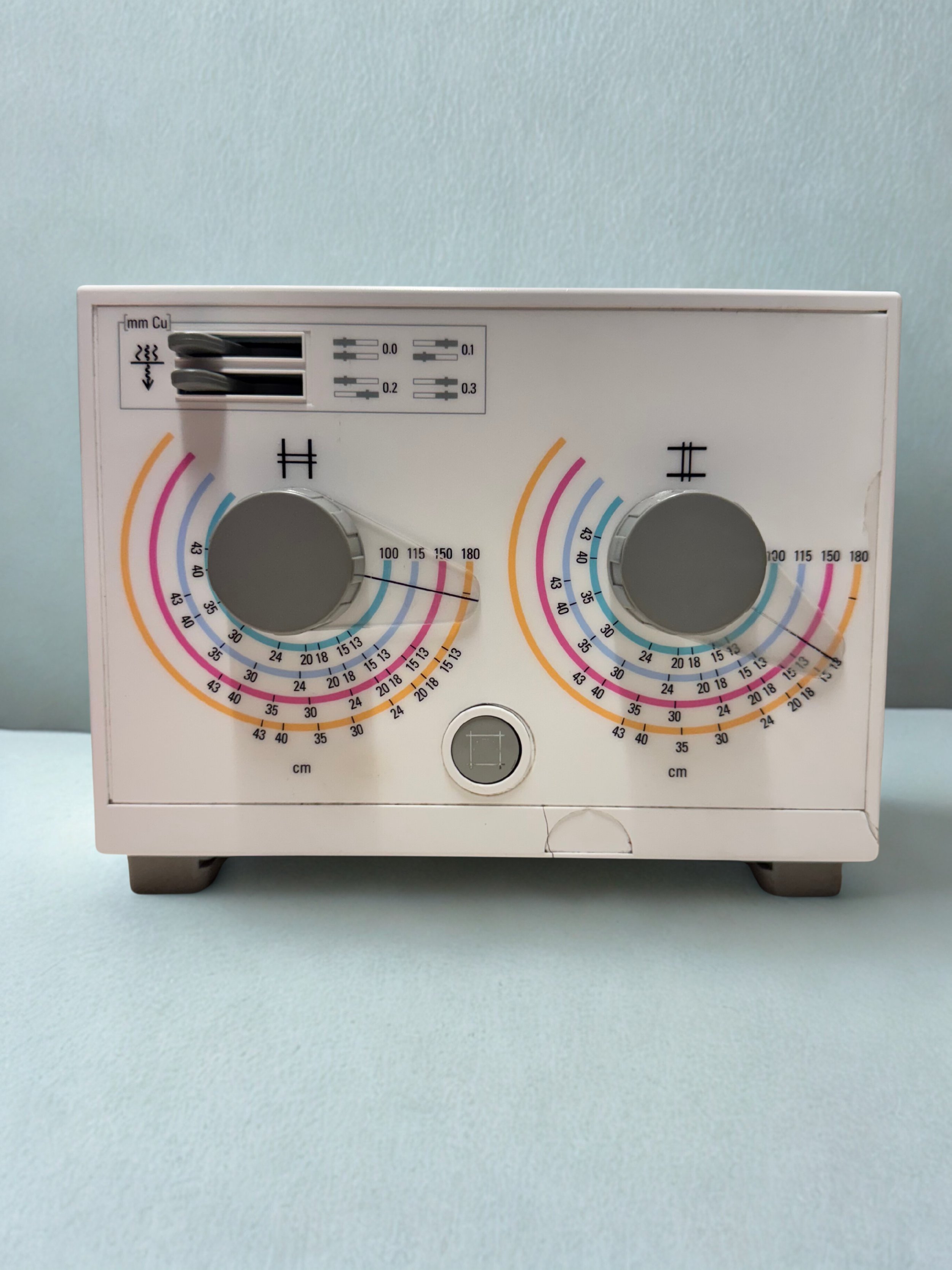

Scales for 100, 115, 150, and 180 cm source-to-image distances

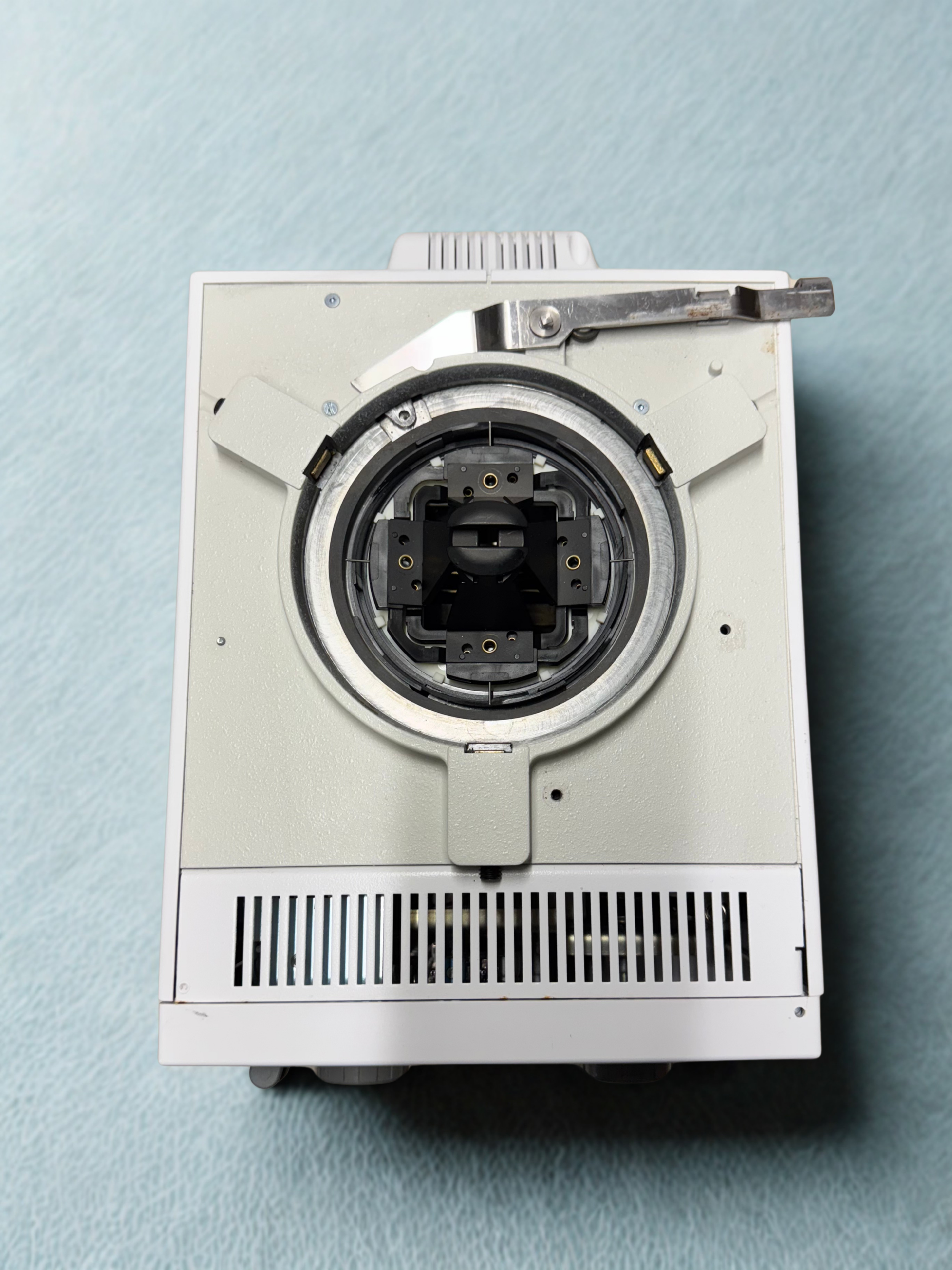

±45° rotation with locking at 0° via swiveling flange
Integrated tape measure for user-friendly operation
Dual accessory rails for attaching filters or other devices
Custom versions available on request
Tested, ready to ship, and available from stock. Contact us for installation options.
Technical Specifications:
Dimensions (L x W x H): 268 x 228 x 182 mm
Weight: 10.5 ± 1 kg
Aperture angle: 28°
Rotation around beam axis: ±45°
Field size at SID = 90 cm: max 43 x 43 cm
Field size at SID = 100 cm: min 3 x 3 cm
Power supply: 24V DC ±10%, max 3A
Protection class: IEC 60601-1 Class I
Operating temperature: 10–40 °C
Storage temperature: -40–70 °C
Inherent filtration: 1.0 mm Al @ 70 kV
Leakage radiation: < 0.5 mGy/h
Laser class: IEC 60825-1 Class 2
